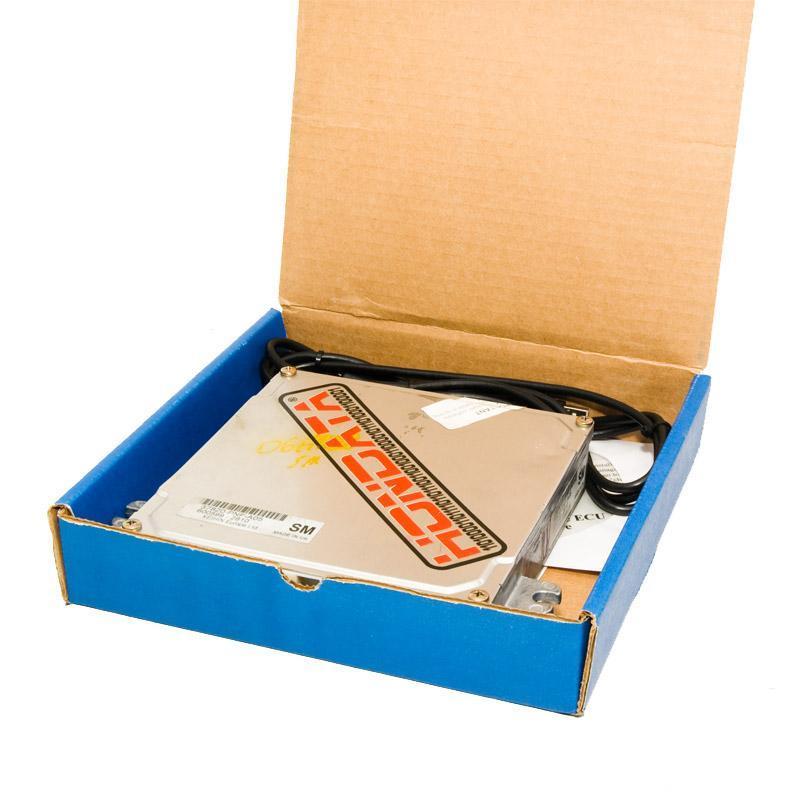

Presenting the Hondata Modified RSX TYPE-S ECU: This ECU is specially tuned by Hondata for 2002-2004 RSX TYPE-S models and comes with an adapter harness for compatibility with 2005-2006 Acura RSX vehicles. Hondata's expertise lies in making hardware adjustments to the 2002-2004 ECU to ensure seamless operation with the distinct sensors and actuators found in the 2005-2006 ECU. It's important to note that after these modifications, the ECU will no longer function correctly on a 2002-2004 RSX. Hondata exclusively offers the adapter harness along with the modified ECU.

Please be aware that an unmodified 2002-2004 ECU with an adapter harness (with or without KPro) will not function on a 2005-2006 RSX without the internal ECU modifications performed by Hondata. The 05-06 K-Pro is specifically certified for use in 05/06 RSX models. Engine swaps utilizing an 05-06 RSX engine and gearbox in a different chassis are not supported with the 05/06 K-Pro and adapter harness.

To ensure compatibility, you must use a primary oxygen sensor from the 02-04 RSX or 02-05 Civic Si; the 05-06 RSX O2 sensor will not work. Additionally, some sensors need to be disabled to eliminate ECU-generated errors. Note that the speed sensor in the 05/06 RSX gearbox operates significantly faster than in the 02-04 RSX, potentially affecting cruise control above 65-70 MPH.

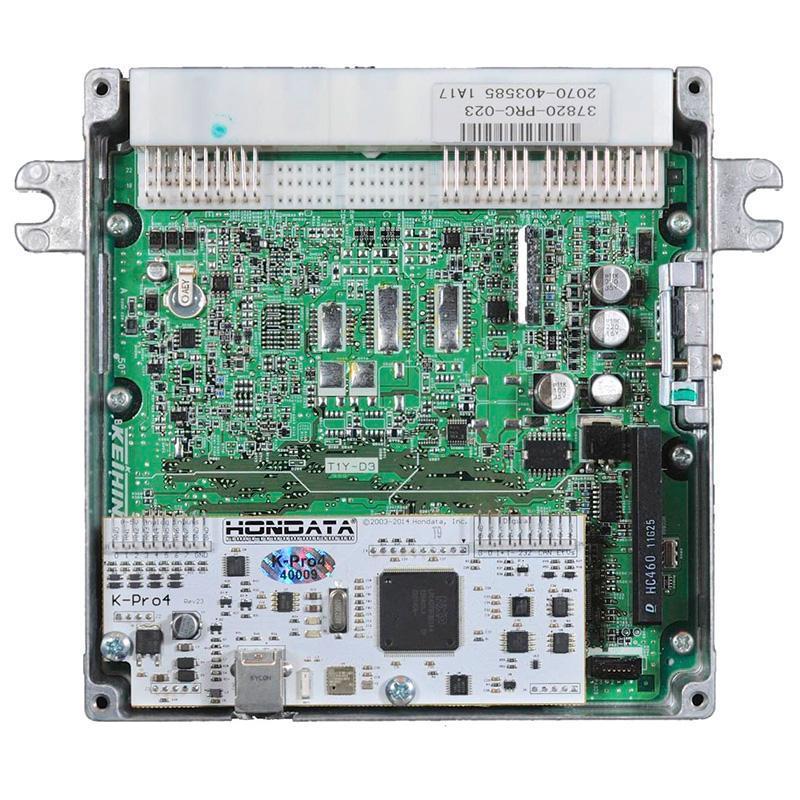

What is the K-Pro ECU? The K-Pro ECU is a specially modified 2002 to 2004 Honda ECU with a USB interface for seamless connection to a Windows-based notebook PC. It is currently available for the standard shift Acura RSX base model and Type-S, the US Civic Si, and the Euro Civic Type R. K-Pro ECU Manager software empowers users to fine-tune critical parameters such as cam angle, ignition advance, and fuel delivery. Its primary goal is to optimize engine performance across various conditions and engine configurations. It also allows you to disable the immobilizer, particularly valuable for those performing engine swaps.

Key Features:

• Fits inside the ECU
• Designed and assembled in the USA
• USB connection for fast and reliable communication
• KManager Windows-based software for parameter editing, calibration uploading, and data logging
• Preloaded with numerous calibrations for common engine setups
• Onboard data logging with 8 MB memory (equivalent to 10-215 minutes of data logging)
• Supports various injector sizes with overall fuel trim
• Configurable for different MAP sensors (up to 5 Bar and above)
• TPS-based table lookup for ITBs
• Engine protection against lean air-fuel ratios, overboost, and low oil/fuel pressure
• Expanded fuel and ignition tables up to 60 lbs boost and 11,000 rpm
• Launch control with anti-lag
• Three multi-purpose outputs for nitrous control or similar applications
• Supports lambda tracing from stock or aftermarket wideband O2 sensors
• PWM output for boost control
• Bluetooth compatibility with the Hondata Mobile app
• Ethanol sensor input for flex-fuel capability
• Alternate speed sensor input
• Dash output via serial and CAN streams
• Live tuning and auto-tune capabilities
