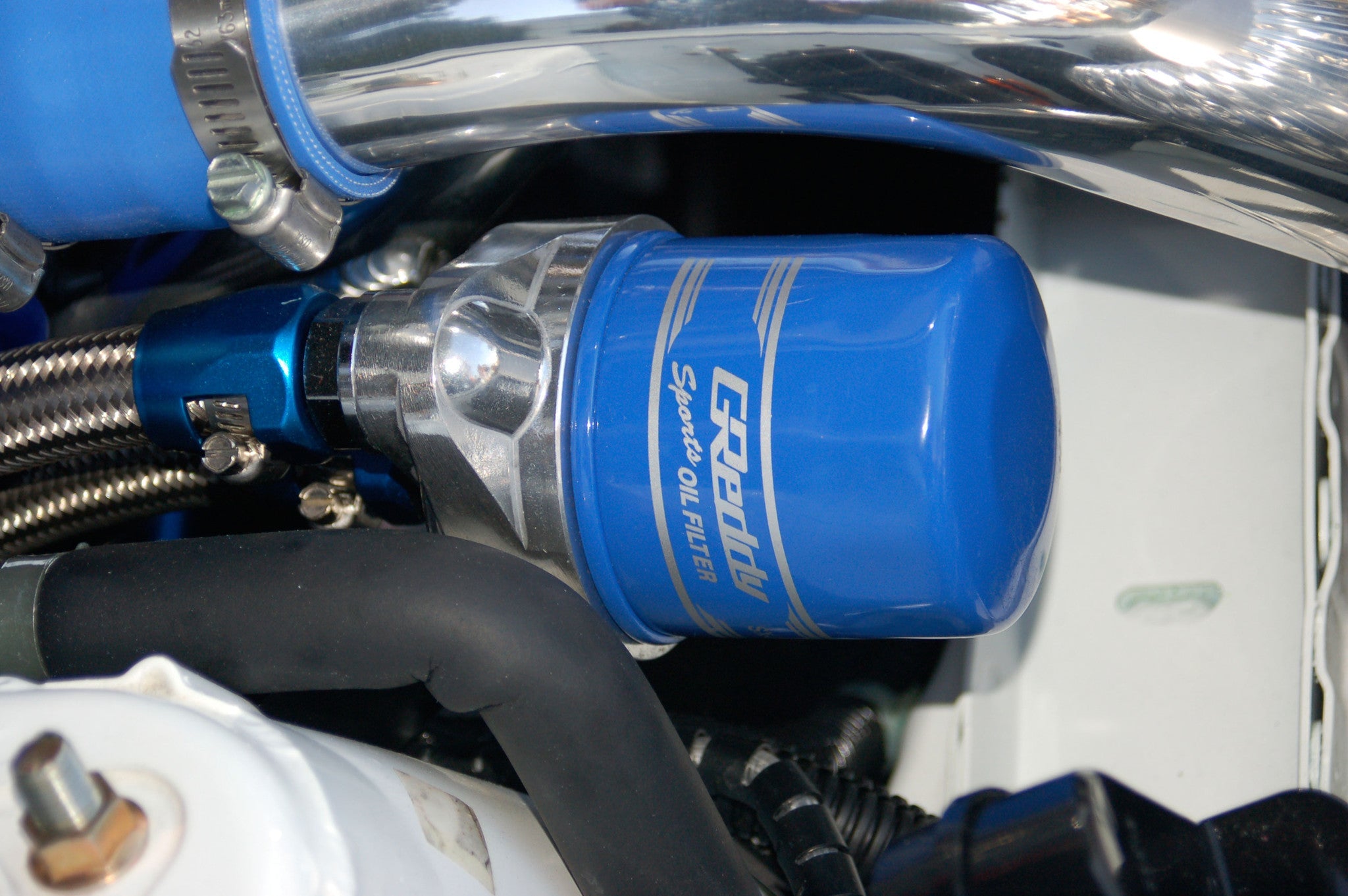

GReddy Sports OX Oil Filters harness advanced “double pleats” folding technology within their filter media. This innovation expands the surface area for contaminant removal, ensuring superior filtration. Built for durability and ease of removal, these filters are perfectly suited for use with GReddy Motor Oil, Oil Coolers, and Oil Filter Relocation Kits.

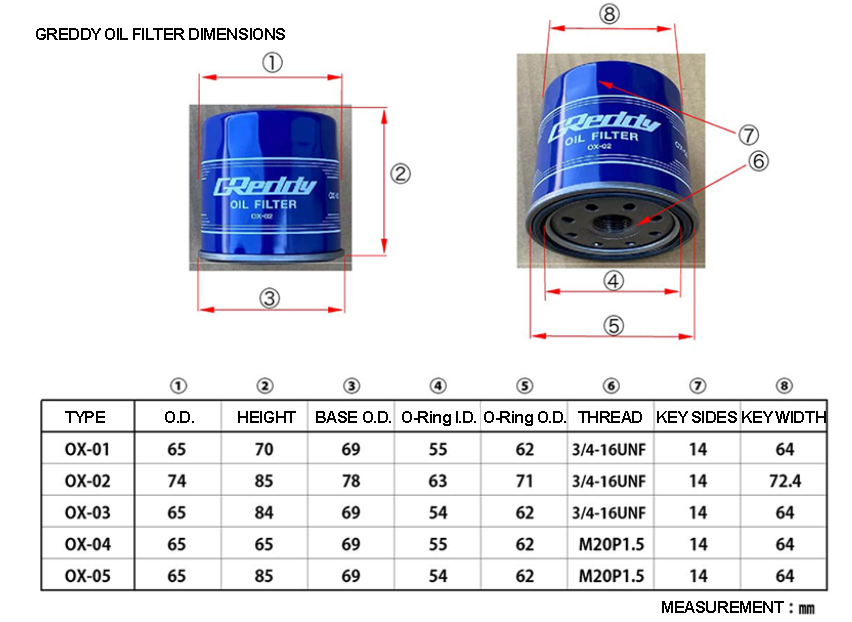

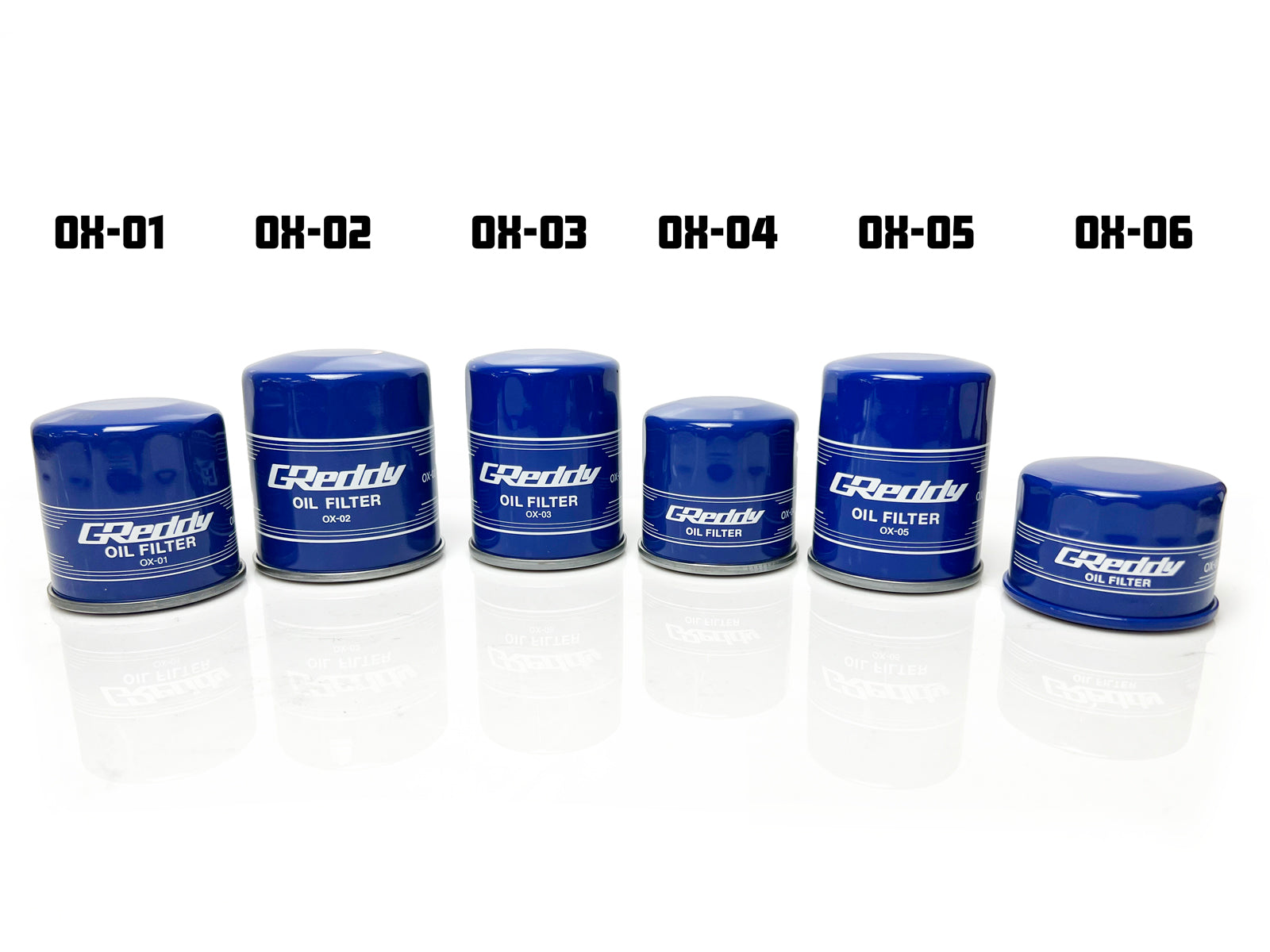

Filter Specifications:

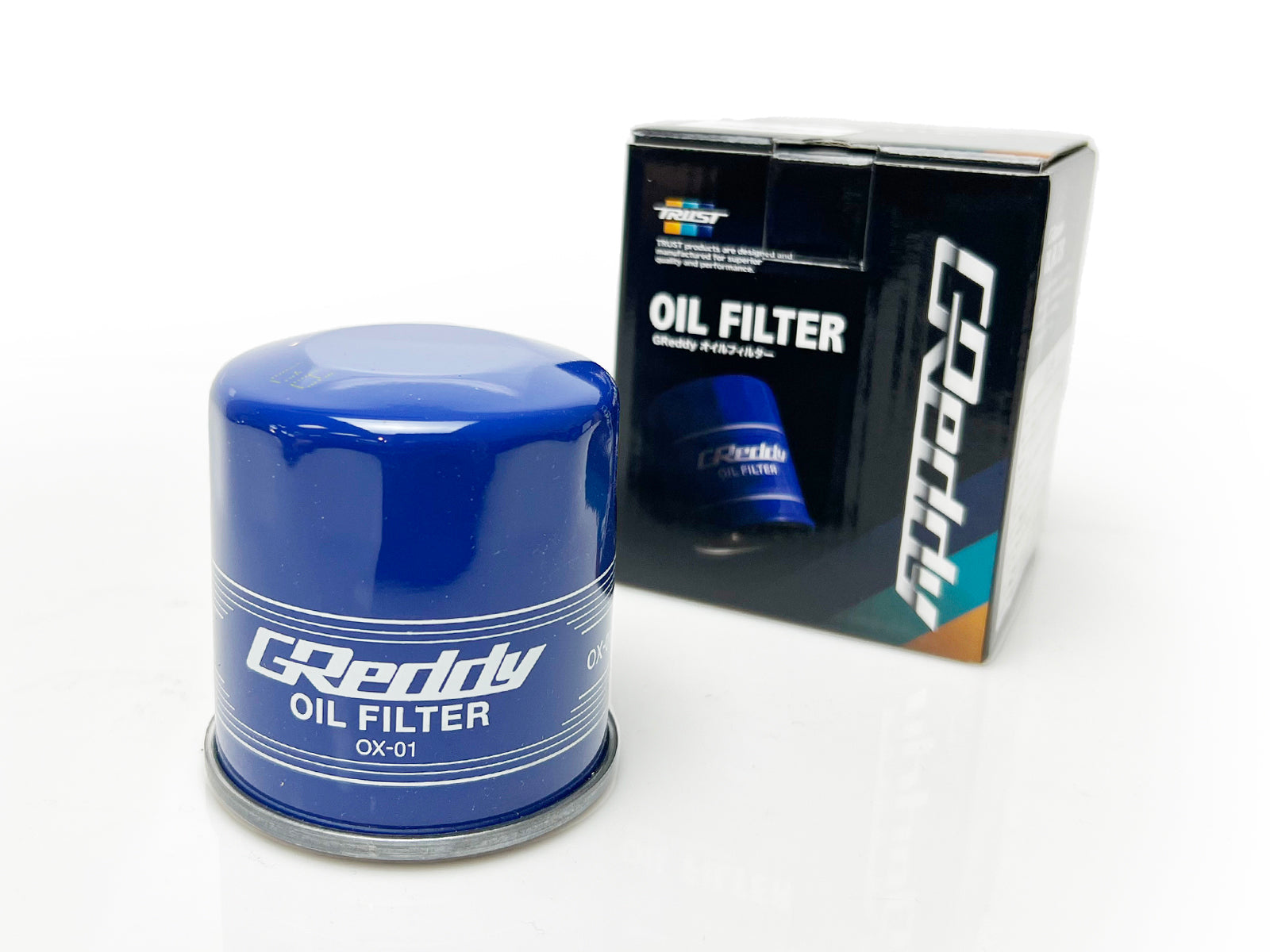

OX-01 Series

• Ideal for: GReddy 3/4 JDM Oil Cooler Blocks, Toyota 4AG/3SG, Nissan SR20 (Red)
• Specs: Thread 3/4-16UNF, Dia. 65mm, Ht. 70mm, Base 69mm, O-Ring IDs 55mm/ODs 62mm, Key 14 Sides, Width 64mm

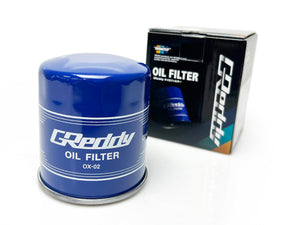

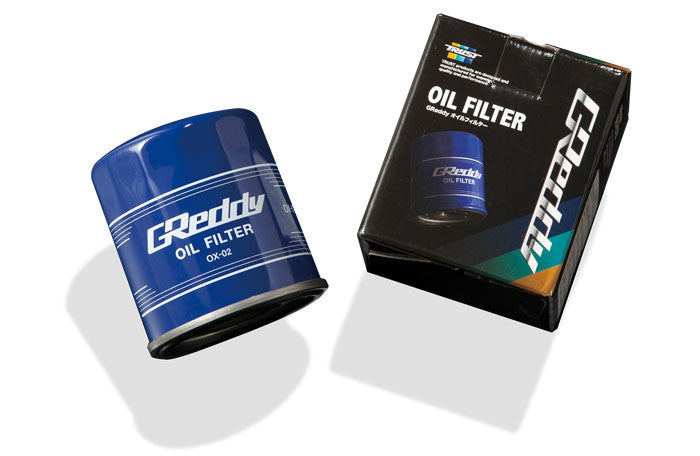

OX-02 Series

• Ideal for: Toyota 1JZ/2JZ, 1G Engines
• Specs: Thread 3/4-16UNF, Dia. 74mm, Ht. 85mm, Base 78mm, O-Ring IDs 63mm/ODs 71mm, Key 14 Sides, Width 72.4mm

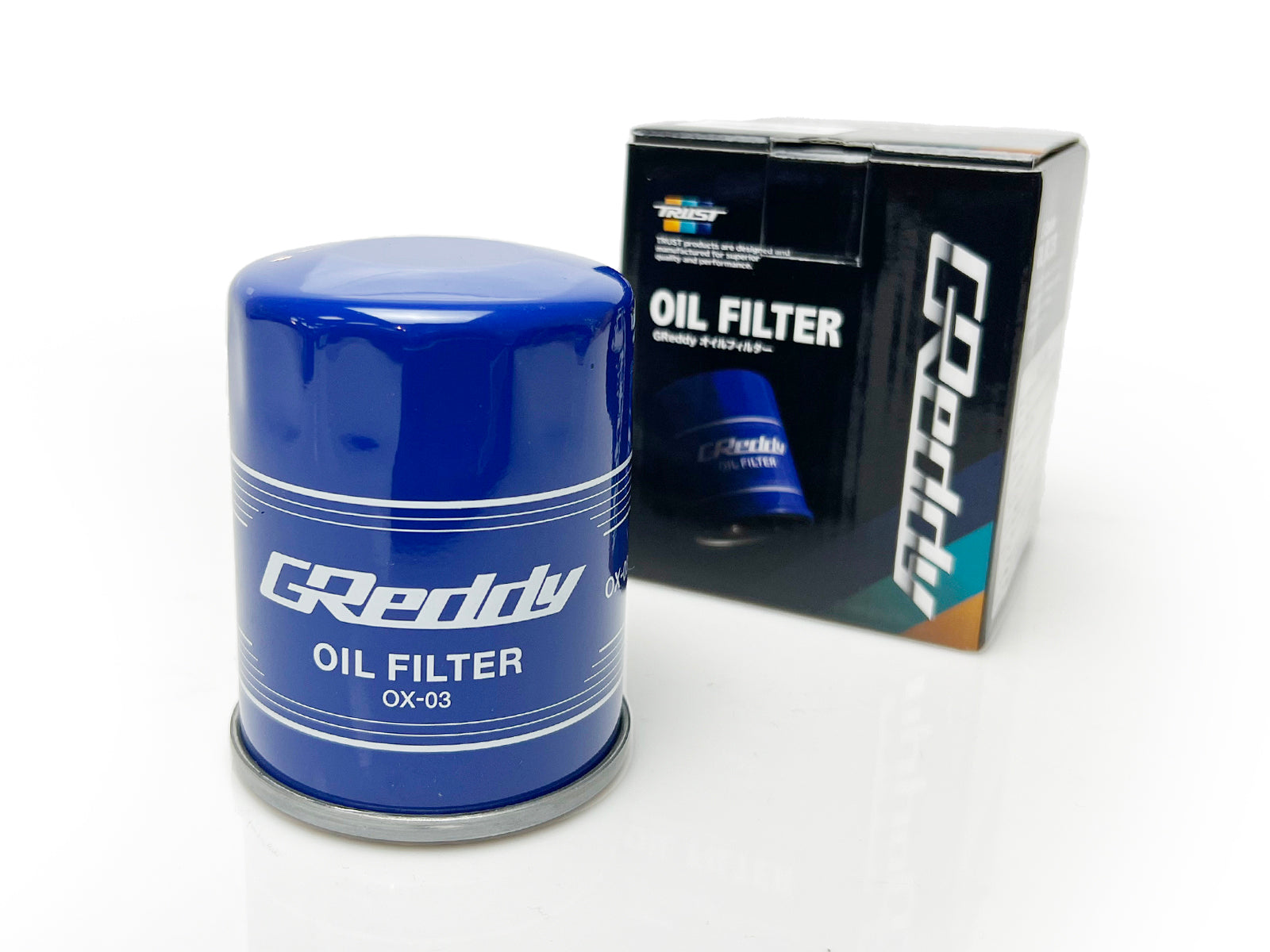

OX-03 Series

• Ideal for: GReddy 3/4 JDM Oil Cooler Blocks, Toyota 4AG/3SG, Nissan RB Engines
• Specs: Thread 3/4-16UNF, Dia. 65mm, Ht. 84mm, Base 69mm, O-Ring IDs 54mm/ODs 62mm, Key 14 Sides, Width 64mm

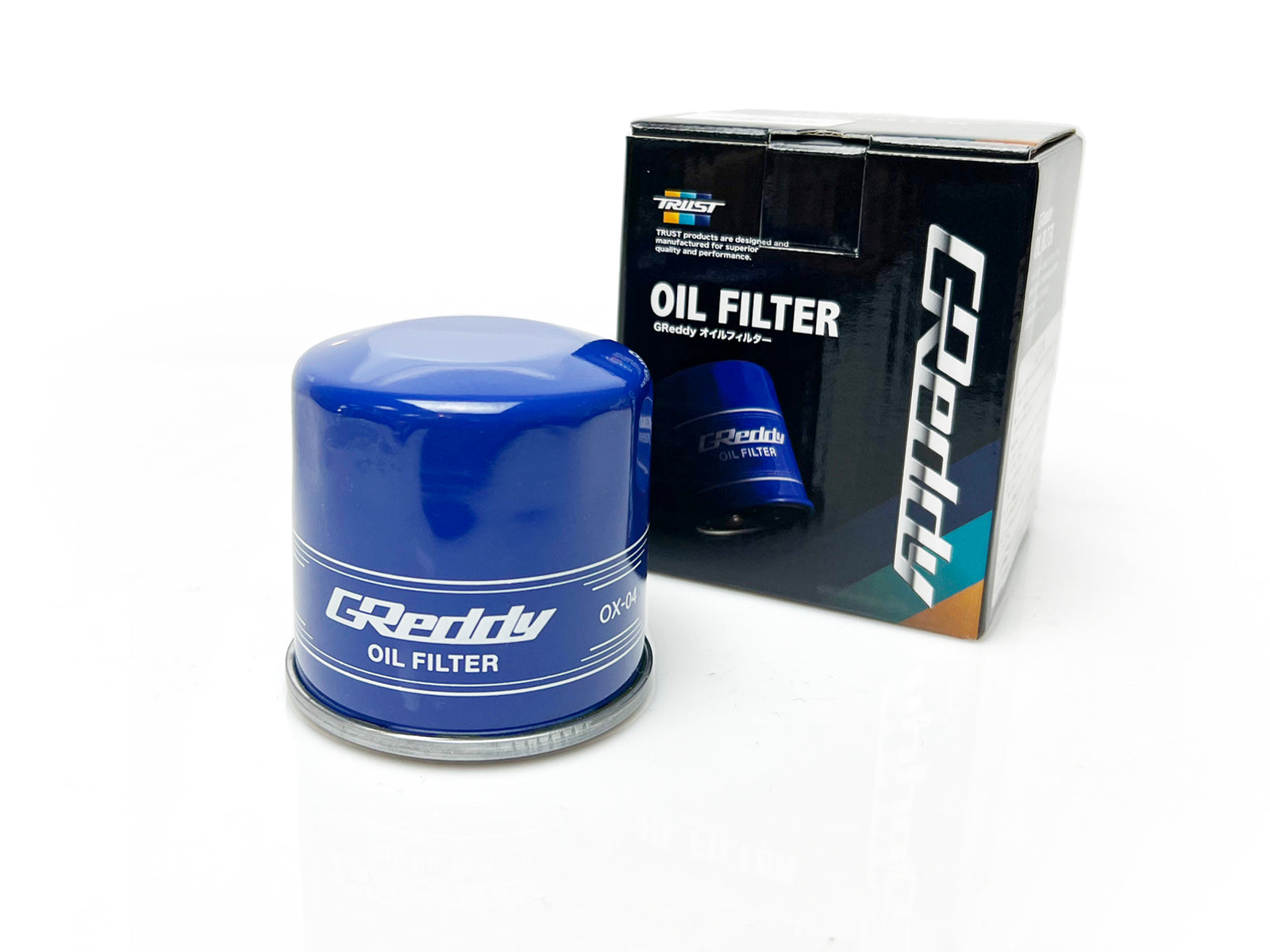

OX-04 Series

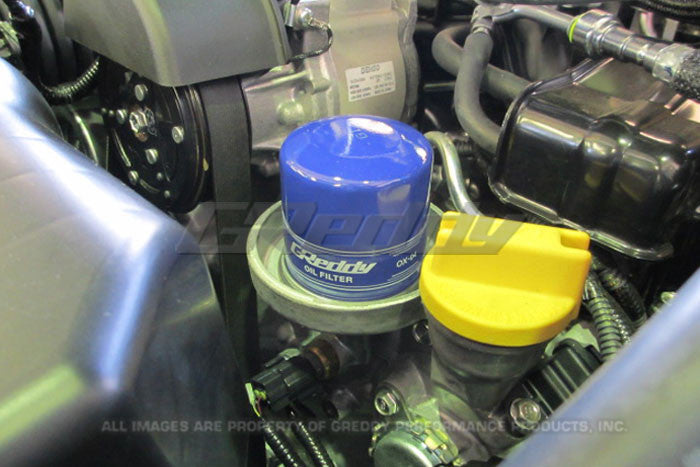

• Ideal for: Nissan VQ/SR (Black)/VR38DETT, Mazda BP/13B, Honda ZC/B-Series, Subaru EJ Series, Scion 4U-GSE, GReddy M20 Oil Blocks
• Specs: Thread M20xP1.5, Dia. 65mm, Ht. 65mm, Base 69mm, O-Ring IDs 55mm/ODs 62mm, Key 14 Sides, Width 64mm

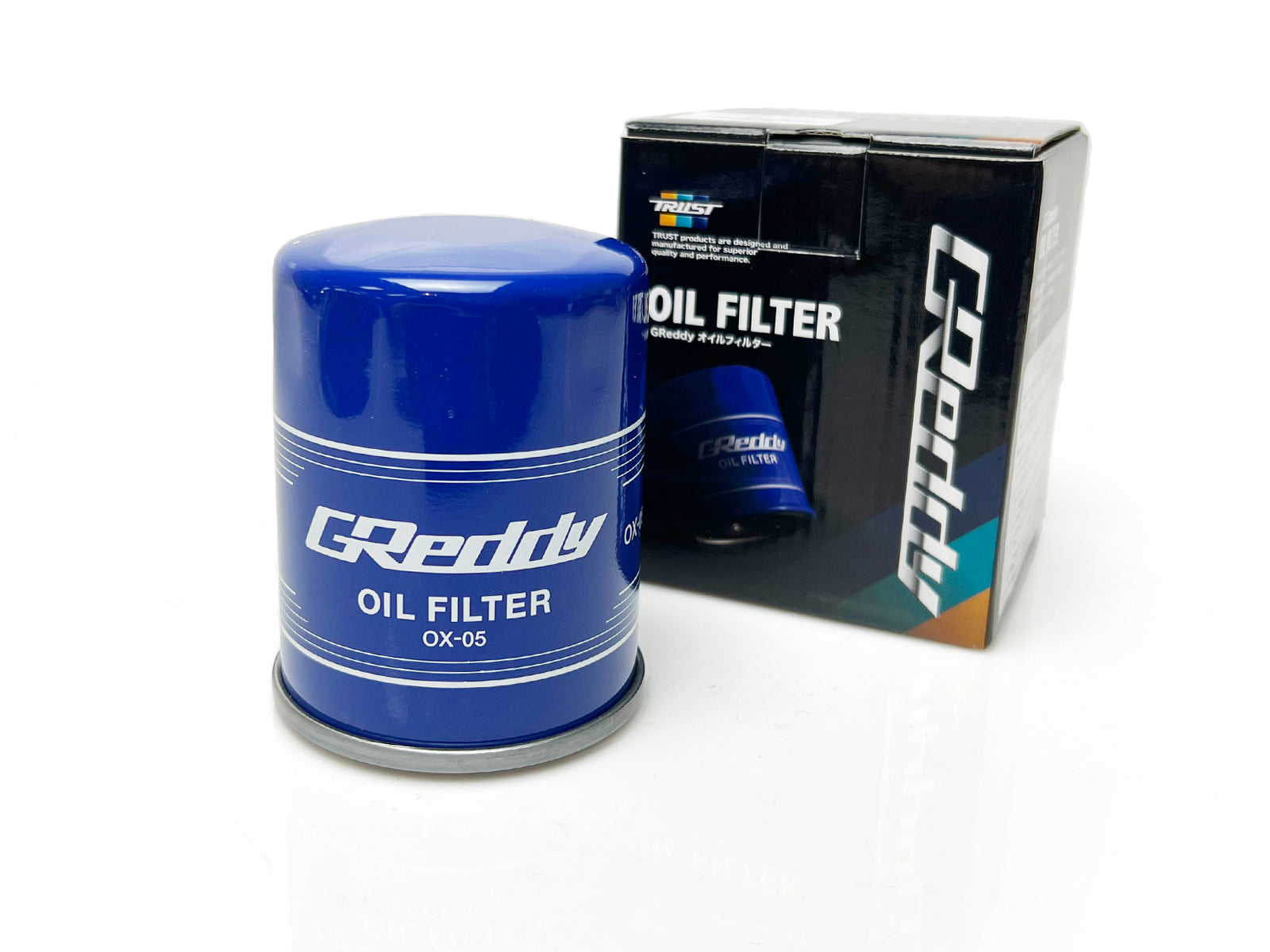

OX-05 Series

• Ideal for: Honda ZC/B20, Mitsubishi 4G6#/6A12, Mazda K8/FS Engines
• Specs: Thread M20xP1.5, Dia. 65mm, Ht. 85mm, Base 69mm, O-Ring IDs 54mm/ODs 62mm, Key 14 Sides, Width 64mm

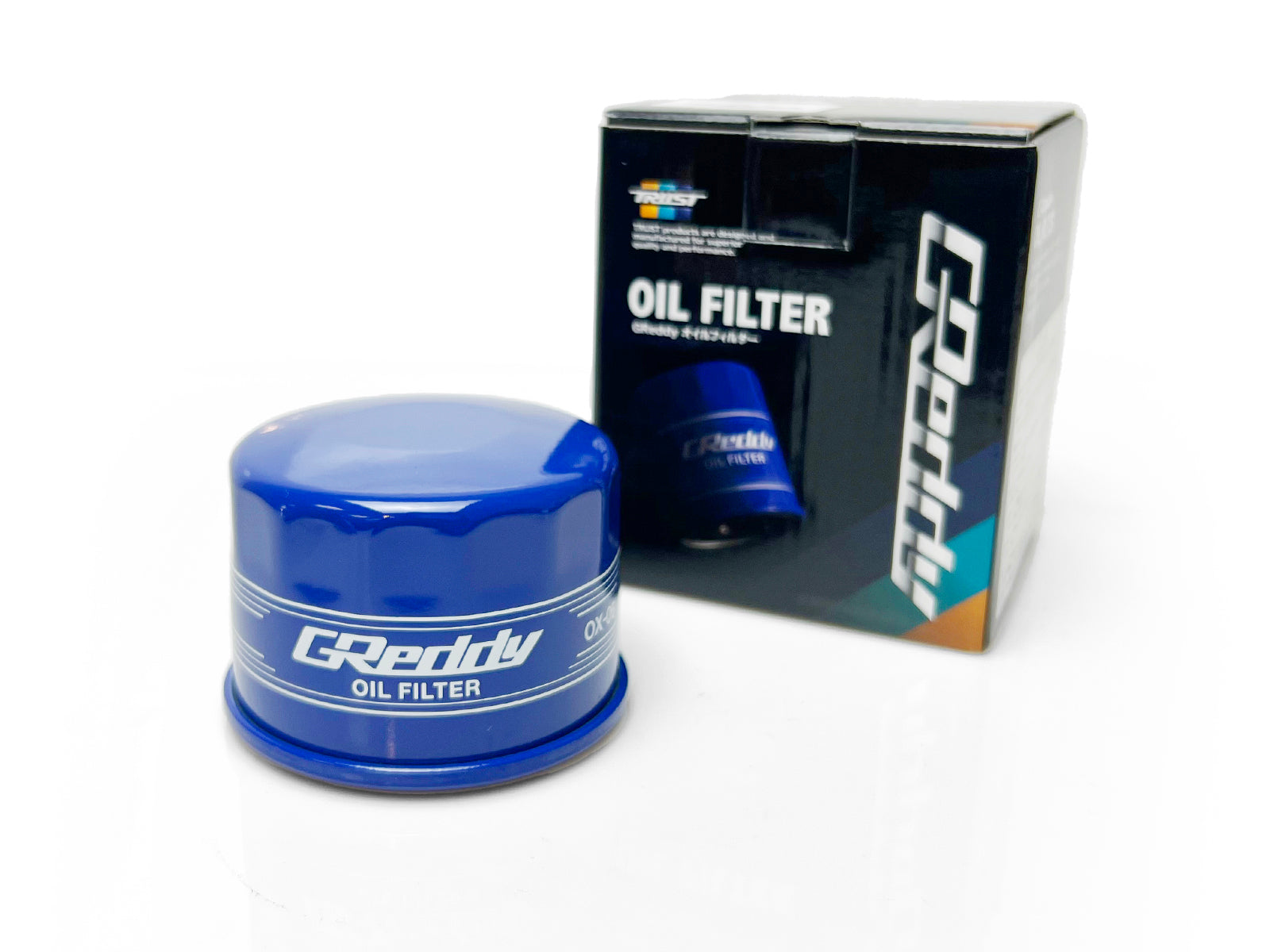

OX-06 Series

• Ideal for: Compact-sized applications, GReddy 3/4 JDM Oil Cooler Blocks
• Specs: Thread 3/4-16UNF, Dia. 62mm, Ht. 50mm, Base 72mm, O-Ring IDs 56mm/ODs 66mm, Key 14 Sides, Width 66mm

Each filter is tailored for specific engine requirements, ensuring a flawless fit and unmatched performance for an array of engine models.
