About

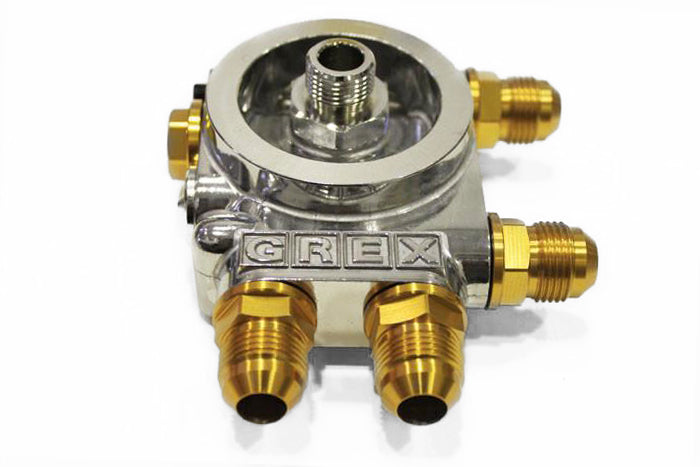

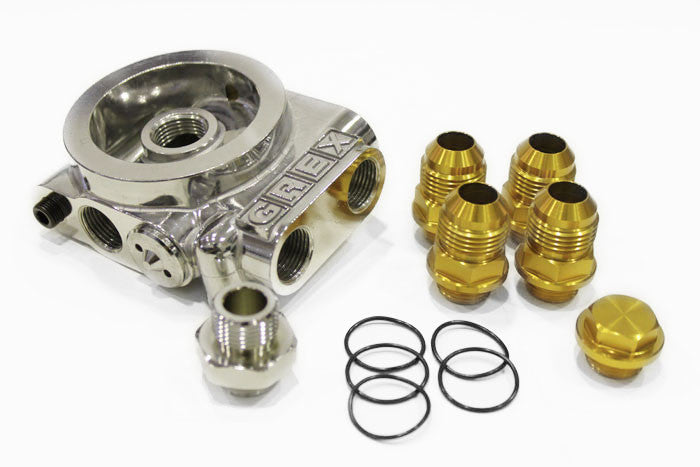

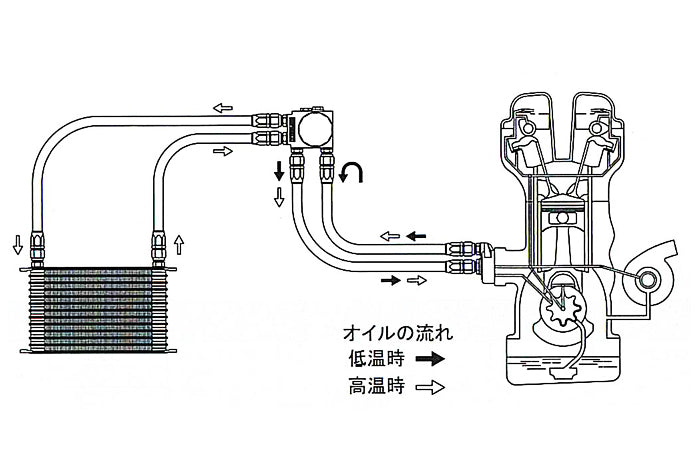

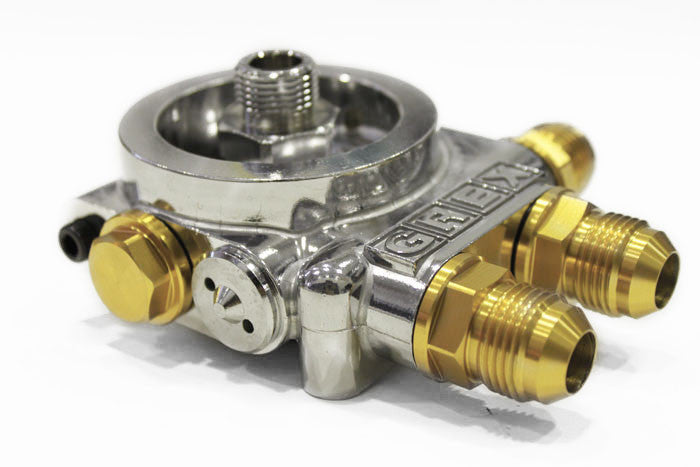

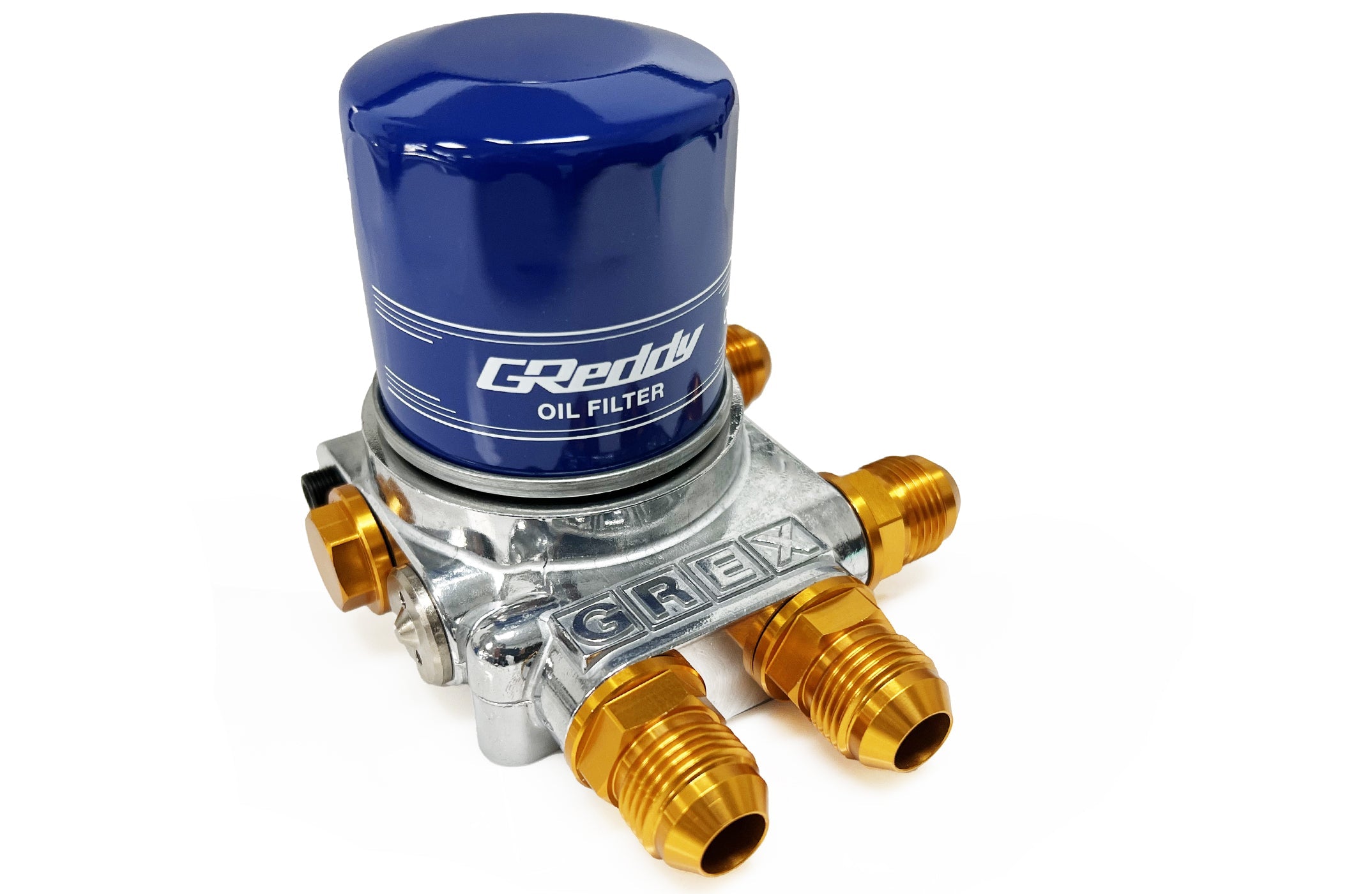

Optimize your oil system with the GReddy Universal Remote Oil Filter Block Type I, complete with AN -10 Fittings and an integrated GReddy Thermostat (70-80°C). This setup is perfect for those designing custom Oil Cooler Kits that require oil filter relocation.
To ensure compatibility and performance, it is necessary to use GReddy-specific oil filters such as QX-01 (P/N 13901101) or QX-03 (P/N 13901103), both designed for 3/4"x16UNF threads, or the AE86 - 4AG sized oil filter.
This oil block should be paired with a -10 AN Oil Block Adapter without a built-in thermostat:
- Type-B: For M20 x P1.5 threads, use P/N 12401129 or for 3/4 x 16UNF threads, use P/N 12401111.
- Type-F: For M20 x P1.5 threads, use P/N 12401131 or for 3/4 x 16UNF threads, use P/N 12401135. These adapters are sold separately to match your engine's specifications.
To integrate pressure and temperature sensors into your oil system, utilize part number 16400721 designed for 1/8PT ports.
Optimize your oil system with the GReddy Universal Remote Oil Filter Block Type I, complete with AN -10 Fittings and an integrated GReddy Thermostat (70-80°C). This setup is perfect for those designing custom Oil Cooler Kits that require oil filter relocation.
To ensure compatibility and performance, it is necessary to use GReddy-specific oil filters such as QX-01 (P/N 13901101) or QX-03 (P/N 13901103), both designed for 3/4"x16UNF threads, or the AE86 - 4AG sized oil filter.
This oil block should be paired with a -10 AN Oil Block Adapter without a built-in thermostat:
- Type-B: For M20 x P1.5 threads, use P/N 12401129 or for 3/4 x 16UNF threads, use P/N 12401111.
- Type-F: For M20 x P1.5 threads, use P/N 12401131 or for 3/4 x 16UNF threads, use P/N 12401135. These adapters are sold separately to match your engine's specifications.
To integrate pressure and temperature sensors into your oil system, utilize part number 16400721 designed for 1/8PT ports.
GReddy Remote Filter Oil Cooler Block Adapter Type-I
- Regular price
- $150.00 USD
- Sale price
- $150.00 USD
- Regular price
-
Translation missing: en.products.product.sku:12401114
